How Does a Bottle Inspection Machine Handle Feeding, and What Adjustments Are Needed When Products Change?
Date:2026-01-28 Views:107
KEYETECH AI automatic bottle inspection machines are directly connected to the outlet of the blow molding machine. Two synchronized belts form a clamping conveying channel that smoothly and continuously transfers bottles into the inspection zone, enabling fully automated flow from blowing to inspection.
Our system supports bottles with heights from 30–100 mm and widths from 20–60 mm. Product changeover requires only two simple standardized steps:

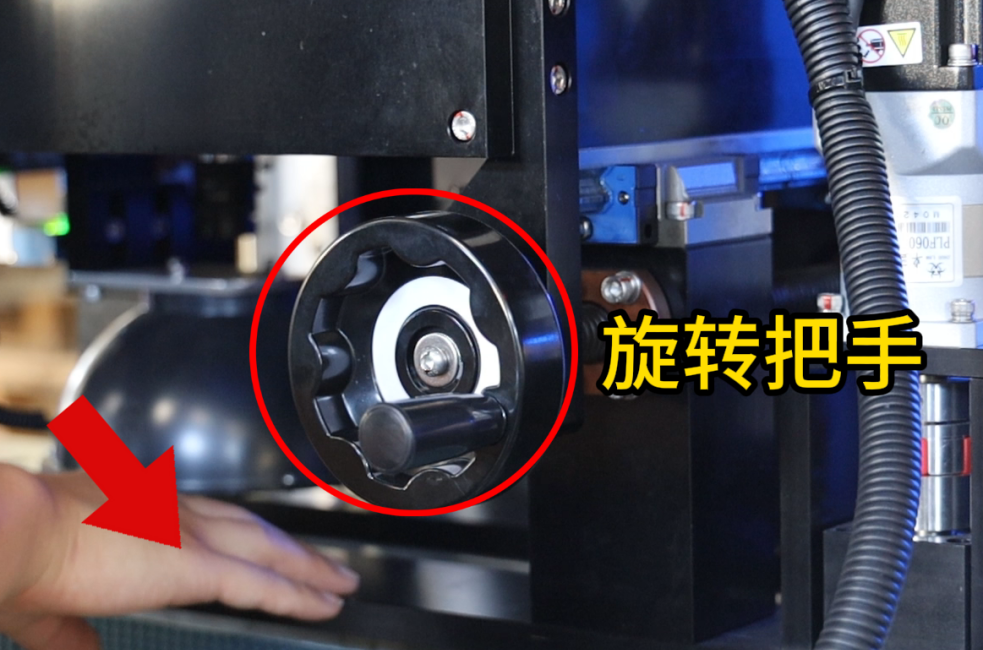

Step 1: Adjust the Clamping Belts

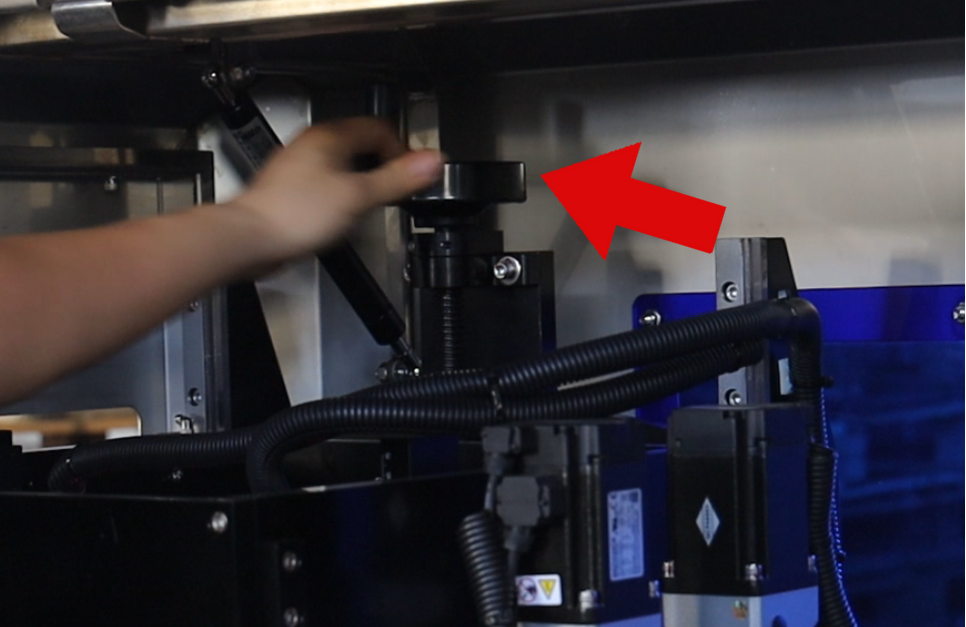

After switching products, simply adjust the belt width and height to ensure bottles are stably conveyed into the inspection station.
Step 2: Switch Product Templates
Select the corresponding inspection model in the software, observe the detection results, and fine-tune algorithm parameters if needed.
